Left Coolant Pipe On SUBFRAME, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the left engine mount. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
-- Place a cloth underneath to catch leaking coolant.
-- Clamp off the coolant hoses using the :3094 .

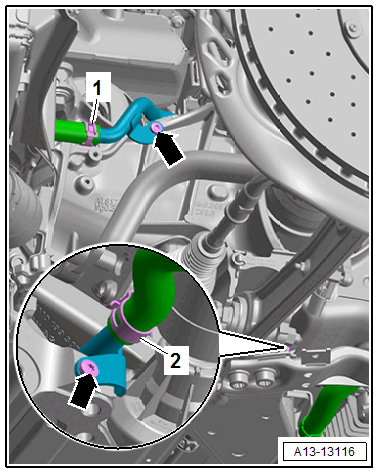

-- Loosen the hose clamps -1 and 2- and remove the coolant hoses.
-- Remove the coolant pipe.
