Coolant Pipe 1, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .

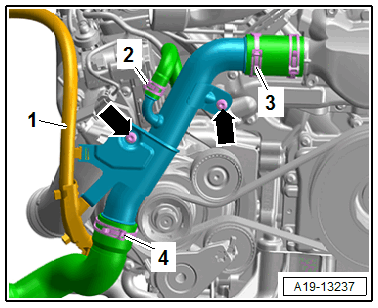

-- Free up the B+ wire -1- for the Starter Generator - C29-.
-- Place a cloth underneath to catch leaking coolant.
-- Loosen the hose clamps -2 and 4- and remove the coolant hoses.
-- Loosen the hose clamp -3-.
-- Remove the bolts -arrows- and remove the coolant pipe.
