Camshaft, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the applicable camshaft housing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and remove the Camshaft Positioning Tool : T40331/1 .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 to 5- and remove the bearing cap and exhaust camshaft -6-.

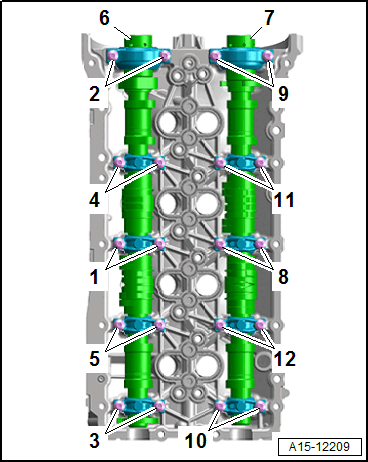

Fig 1: Camshafts Bearing Cap - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -8 to 12- and remove the bearing cap and intake camshaft -7-.
