Cam Actuator, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
- Check the O-ring for damage.
-- Bring the cam actuator pin into the installation position.

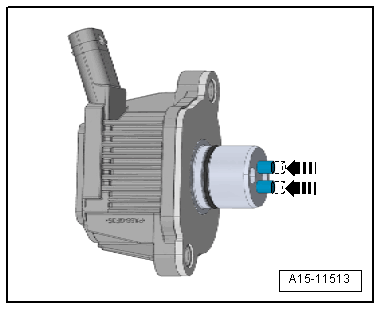

- The cam actuator pin must be pushed in completely -arrows-.
-- Place the cam actuator in the guide in the camshaft housing align and press it on until the O-ring aligns.
-- Slowly press again until the cam actuator makes full contact.
TIP:
If pressed in quickly a pin can unintentionally move.
CAUTION:
Risk of damaging the camshaft housing by tilting the cam actuator.
- Never insert the cam actuator with the bolts in the camshaft housing.
Additional procedures depending on the model. Refer to CAM ACTUATOR, REMOVING AND INSTALLING .
