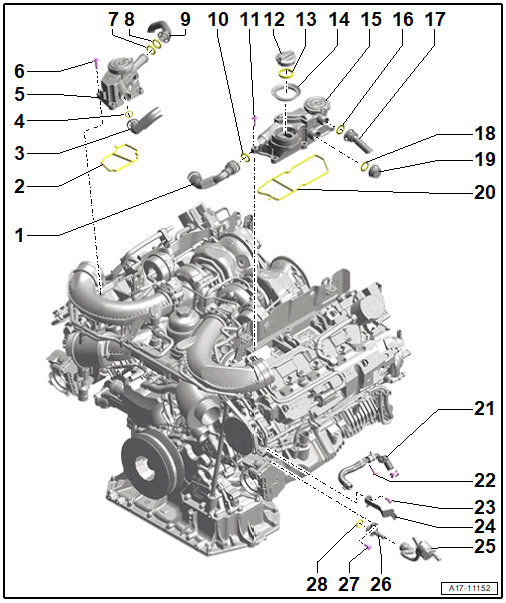

Overview - Crankcase Ventilation, AUDI S8
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
- Hose
- For the crankcase ventilation
- Seal
- Replace after removing
- Hose
- Replace if damaged or leaking
- For the crankcase ventilation
- Replacing. Refer to CRANKCASE VENTILATION HOSE, REPLACING .
- O-Ring
- Replace after removing
- Oil Separator
- For cylinder bank 1 (right)
- Removing and Installing. Refer to OIL SEPARATOR, REMOVING AND INSTALLING .
- Bolt
- 9 Nm diagonally
- O-Ring
- Replace after removing
- Grey
- O-Ring
- Replace after removing
- Red
- Hose
- For the crankcase ventilation
- O-Ring
- Replace after removing
- Bolt
- 9 Nm diagonally
- Cap
- Seal
- Replace if damaged
- Grommet
- Oil Separator
- For cylinder bank 2 (left)
- Removing and Installing. Refer to OIL SEPARATOR, REMOVING AND INSTALLING .
- O-Ring
- Replace after removing
- Hose
- For the crankcase ventilation
- O-Ring
- Replace after removing
- Plugs
- Seal
- Replace after removing
- Hose
- For the crankcase ventilation
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Bracket
- Crankcase Ventilation Valve -N546-
- Connection
- With check valve
- Bolt
- 9 Nm
- O-Ring
- Replace after removing
