Starter Generator Ribbed Belt, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
Depending on the model, preliminary work may be required. Refer to RIBBED BELT, REMOVING AND INSTALLING .
-- Remove the A/C compressor ribbed belt from the vibration damper. Refer to A/C COMPRESSOR RIBBED BELT, REMOVING AND INSTALLING .
CAUTION:
Risk of destroying a used ribbed belt by reversing the running direction.
- Mark the running direction before removal.
- Pay attention to the running direction when reinstalling.

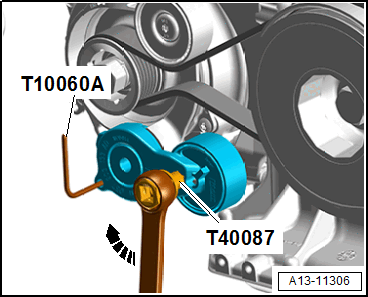

-- Turn the tensioner clockwise -arrow- using the Torx Socket - T60: T40087 to release the tension on the ribbed belt.
Audi RS6/RS7:
-- Position an open end wrench SW 22 onto the Torx Socket - T60: T40087 .
All:
-- Lock the tensioner using the Locking Pin: T10060A and remove the ribbed belt.
