A/C Compressor Ribbed Belt TENSIONER, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the A/C compressor ribbed belt. Refer to A/C COMPRESSOR RIBBED BELT, REMOVING AND INSTALLING .

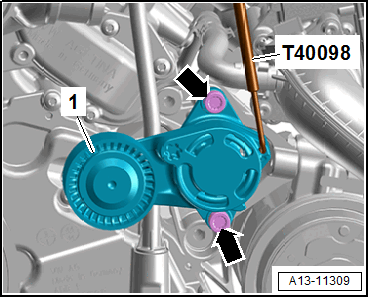

-- Remove the bolts -arrows- and remove the tensioner -1-.
