Sunroof Shade Motor -V260-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ7, 2022 Audi Q7, 2021 Audi SQ7, 2021 Audi Q7, and 2020 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the C-pillar trim panel on the driver side. Refer to VEHICLE INTERIOR TRIM PANELS .
-- Remove the roof end strip. Refer to ROOF TRIM PANELS .
-- Remove the D-pillar trim panels. Refer to VEHICLE INTERIOR TRIM PANELS .
-- Open the sun shade completely.
-- To avoid getting dirt on the headliner, clean the Removal Wedge: T40233 .
-- Push the Removal Wedge: T40233 between the sunroof frame -1- and the headliner.
-- Using the Removal Wedge: T40233 , loosen the headliner all the way around the sunroof frame -arrows-.

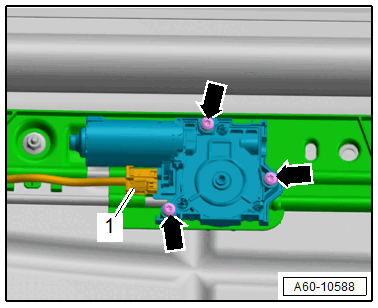

-- Disconnect the connector -1-.
Remove the bolt -arrow- and remove the Sunroof Shade Motor -V260-.
