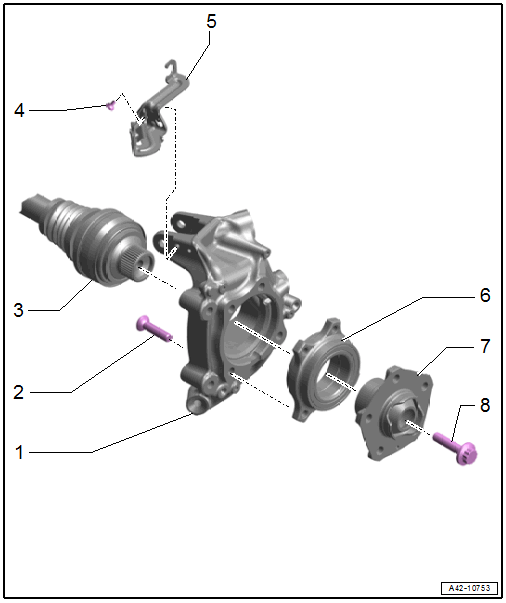

Overview - Wheel Bearing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ7, 2022 Audi Q7, 2021 Audi SQ7, 2021 Audi Q7, and 2020 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
- Wheel Bearing Housing
- Removing and Installing. Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING .
- Bolt
- Replace after removing
- 80 Nm + 90°
- Drive Axle
- There are different versions. Refer to OVERVIEW - DRIVE AXLE .
- Bolt
- 8 Nm
- Bracket
- For wires
- Wheel Bearing
- Wheel Bearing Unit, Removing and Installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .
- Wheel Bearing Unit, Servicing. Refer to WHEEL BEARING UNIT, SERVICING .
- Handling the wheel bearing. Refer to Fig 2.
- Wheel Hub
- Bolt
- Drive Axle Threaded Connection, Loosening and Tightening. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .
Wheel Bearing, Handling
Always set the wheel bearing unit down on the wheel hub -1-.
CAUTION:
Contamination increases the risk of destroying the wheel bearing.
- Protect the contact surfaces on the wheel bearing from dirt.
