Left SUBFRAME Shield, Removing And Installing, Version With 3.0L TDI Engine: Removing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the drive axle cover. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

Equipped on some models:

Fig 1: Identifying Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Remove the bolt -1- and move the level control system sensor to the side.

Continuation for All:

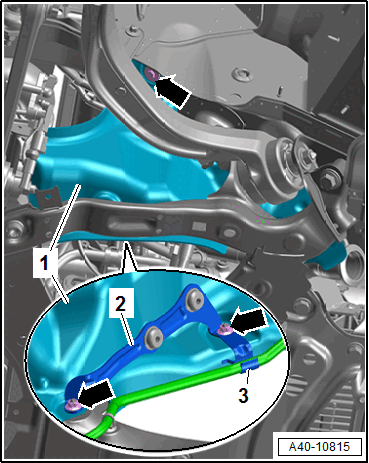

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the threaded connections -arrows-.

-- If installed, free up the bracket -3- with the SCR delivery line and the bracket -2- with the Transmission Fluid Cooling Valve - N509-.

-- Remove the shield -1- toward the left side.
