Overview - Rear Wheel Housing Liner

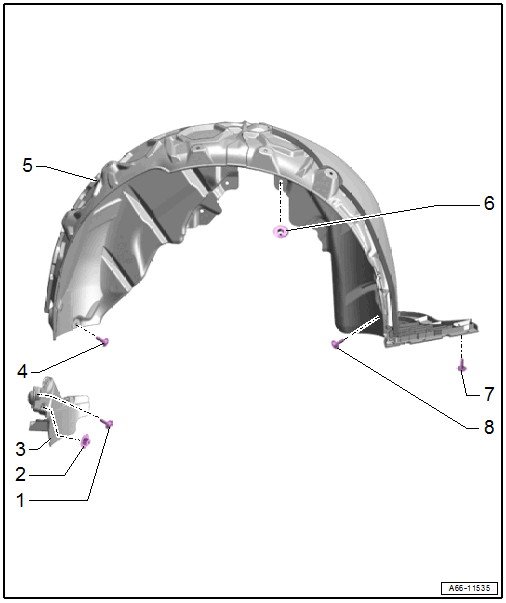

Fig 1: Exploded View Of Rear Wheel Housing Liner

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 2.5 Nm
Nut
- Quantity: 2
- 2 Nm
Rear Wheel Spoiler
- Removing and Installing. Refer to REAR WHEEL SPOILER, REMOVING AND INSTALLING .
Bolt
- Quantity: 4
- 2.5 Nm
Rear Wheel Housing Liner
- Removing and Installing. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .
Nut
- There are different numbers
  - Left: quantity 5
  - Right: quantity 4
- 2 Nm
Bolt
- Quantity: 2
- 2.5 Nm
Bolt
- Quantity: 5
- 2.5 Nm
