Overview - Front Wheel Housing Liner

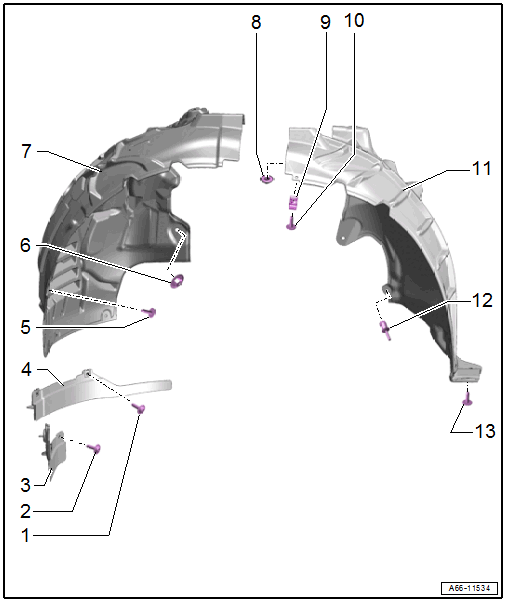

Fig 1: Exploded View Of Front Wheel Housing Liner

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Quantity: 2
- 2.5 Nm
Bolt
- Quantity: 2
- 2.5 Nm
Front Outer Wheel Spoiler
- Removing and Installing. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING, OUTER .
Inner Front Wheel Spoiler
- Removing and Installing. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING, INNER .
Bolt
- Quantity: 2
- 2.5 Nm
Nut
- Quantity: 3
- 2 Nm
Front Wheel Housing Liner Front Section
- Removing and Installing. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING, FRONT SECTION .
Nut
- Quantity: 5
- 2 Nm
Bracket
- For the wheel housing liner to the fender
Bolt
- 2.5 Nm
Front Wheel Housing Liner Rear Section
- Removing and Installing. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING, REAR SECTION .
Expanding Rivet
- Quantity: 2
Bolt
- Quantity: 3
- 2.5 Nm
