Overview - Underbody Trim Panels

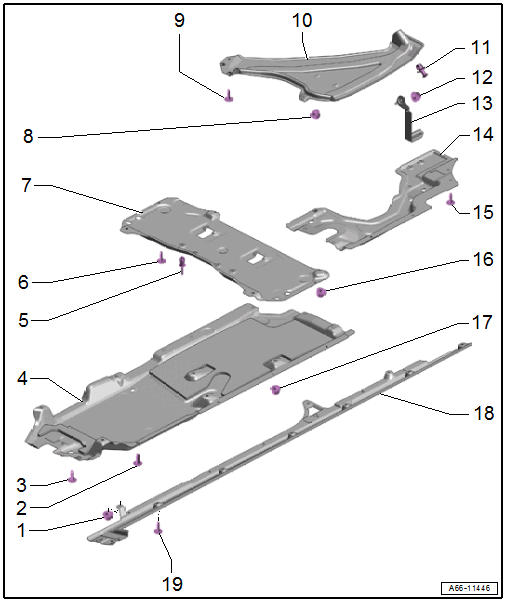

Fig 1: Exploded View Of Underbody Trim Panels

Courtesy of AUDI OF AMERICA, LLC

Nut
- Quantity: 2
- 2 Nm
Bolt
- Quantity: 4
- 2.5 Nm
Bolt
- Replace after removing
- 6 Nm
Front Underbody Panel
- Removing and Installing. Refer to UNDERBODY TRIM PANEL, REMOVING AND INSTALLING, FRONT .
Expanding Rivet
- Quantity: 4
Bolt
- Quantity: 2
- 2.5 Nm
Center Underbody Trim Panel
- Removing and Installing. Refer to UNDERBODY TRIM PANEL, REMOVING AND INSTALLING, CENTER .
Nut
- 2.5 Nm
Bolt
- 2.5 Nm
Rear Underbody Trim Panel
- Removing and Installing. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
Expanding Rivet
Nut
- 4.5 Nm
Bracket
- For the side underbody trim panel
Tank Underbody Trim Panel
- Removing and Installing. Refer to UNDERBODY TRIM PANEL, REMOVING AND INSTALLING, TANK .
Bolt
- Quantity: 6
- 2.5 Nm
Nut
- Quantity: 2
- 2 Nm
Nut
- With fastener
- Quantity: 11
- 2 Nm
Side Underbody Trim Panel
- Removing and Installing. Refer to UNDERBODY TRIM PANEL, REMOVING AND INSTALLING, SIDE .
Bolt
- Quantity: 6
- 2.5 Nm
