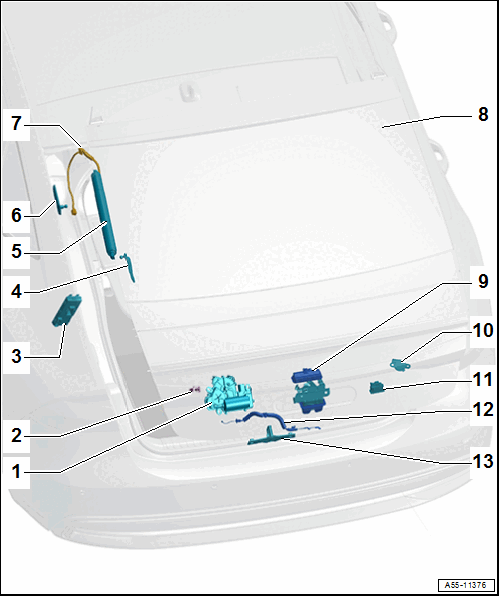

Overview - Electric Rear Lid Release, A7 SPORTBACK

Courtesy of AUDI OF AMERICA, LLC

1. Rear Lid Closing Assist Motor -V382-
   • Removing and Installing. Refer to Rear Lid Closing Aid Motor -V382-, REMOVING AND INSTALLING, A6 AVANT AND A7 SPORTBACK .
2. Locking Element
   • For the closing assist
3. Rear Lid Control Module -J605-
   • Removing and Installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING .
4. Mount
   • With ball pin
5. Rear Lid Motor
   • Left side: Rear Lid Motor 1 -V444- with Sensor in Rear Lid Motor 1 -G745- ; right side: Rear Lid Motor 2 -V445- with Sensor in Rear Lid Motor 2 -G746-
   • Removing and Installing. Refer to REAR LID MOTOR 1 AND 2 -V444- / -V445-, REMOVING AND INSTALLING, A7 SPORTBACK .
6. Mount
   • With ball pin
7. Grommet
8. Rear Lid
   • Overview. Refer to OVERVIEW - REAR LID, A7 SPORTBACK .
9. Release Button In Rear Lid Handle -E234-
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT
10. Rear Lid Warning Buzzer -H32-
    • Removing and Installing. Refer to REAR LID WARNING BUZZER -H32-, REMOVING AND INSTALLING .
11. Rear Lid Control Head -EX58-
    • With Rear Lid Lock Button in Luggage Compartment -E406-, Locking Mechanism Button in the Rear Lid -E806-
    • Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT .
12. Closing Assist Release Cable
    • Removing and Installing. Refer to CLOSING ASSIST RELEASE CABLE, REMOVING AND INSTALLING .
13. Striker
    • Overview. Refer to OVERVIEW - REAR LID, A7 SPORTBACK .
