Engine Speed Sensor -G28-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Audi A6 Quattro and 2021 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Free up the engine wiring harness -1-, remove the bolts -1- and the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC

Audi A6/A7

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness.

-- Lift the clamps -2-, remove and free up the coolant hoses.

-- Disconnect the connector -4- for the Engine Coolant Level Sensor -G32-.

-- Remove the bolt -3- and set the coolant expansion tank aside.

-- Unlock the catch in direction of -arrow A- and release in direction of -arrow B-, and remove the vacuum hose.

Courtesy of AUDI OF AMERICA, LLC

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

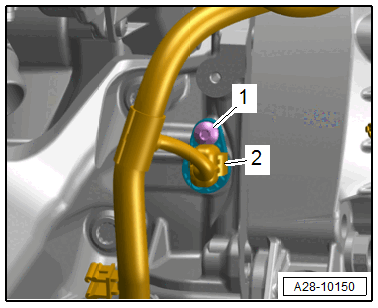

-- Disconnect the connector -2-.

-- Remove the bolt -1- and remove the Engine Speed Sensor -G28-.
