Lower Timing Chain Cover, Replacing: Removing

WARNING: This page is about a different car, the 2022 Audi A6 Quattro and 2021 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Engine oil drained. Refer to ENGINE OIL .

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Free up the wires.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1, 2 and 3- and move the left coolant pipe to the side.

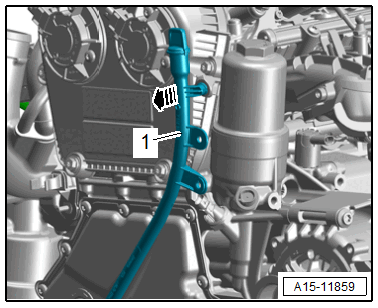

-- If necessary, unclip the oil dipstick tube -1- on the upper timing chain cover in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the oil dipstick tube from the lower timing chain cover.

-- Remove the vibration damper. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .

-- Disconnect the connector -1- for the Oil Pressure Regulation Valve -N428-.

Fig 1: Identifying Oil Pressure Regulation Valve

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 through 15-.

Courtesy of AUDI OF AMERICA, LLC

-- Pry off the lower timing chain cover.
