Special tools and workshop equipment required

Elbow Assembly Tool: T10118

Fig 1: Elbow Assembly Tool T10118
Courtesy of AUDI OF AMERICA, LLC

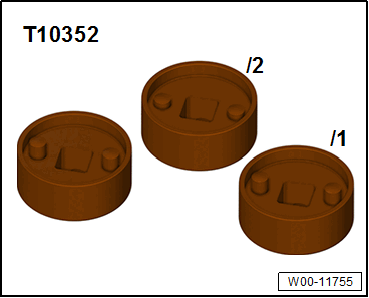

Assembly Tool : T10352/2

Courtesy of AUDI OF AMERICA, LLC

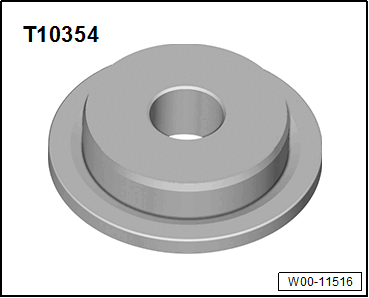

Seal Installer - Crankshaft: T10354

Fig 2: Crankshaft Seal Installer T10354
Courtesy of AUDI OF AMERICA, LLC
Press Piece - Gearbox: T10375

Fig 3: Identifying Press Piece - Gearbox T10375
Courtesy of AUDI OF AMERICA, LLC
Vibration Damper Assembly Tool - Knurled Nut: T10531/4 from the Vibration Damper Assembly Tool: T10531

Fig 4: Assembly Tool Set T10531
Courtesy of AUDI OF AMERICA, LLC
Valve Cotter Tool Kit - Adapter: T40012

Fig 5: Valve Cotter Tool Kit - Adapter
Courtesy of AUDI OF AMERICA, LLC
Camshaft Spacer: T40191

Fig 6: Camshaft Spacer T40191
Courtesy of AUDI OF AMERICA, LLC
Chain Tensioner Lever: T40243

Courtesy of AUDI OF AMERICA, LLC
Wrench - 21mm: T40263

Fig 7: Identifying Wrench - 21mm
Courtesy of AUDI OF AMERICA, LLC
Socket - Xzn 12: T40270

Courtesy of AUDI OF AMERICA, LLC

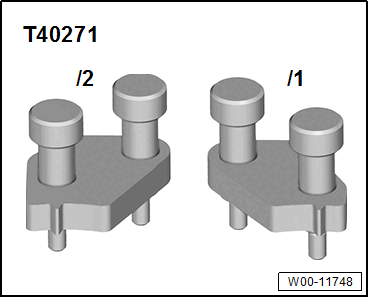

Camshaft Locks: T40271

Courtesy of AUDI OF AMERICA, LLC
Seal Installer - Crankshaft: T40274

Fig 8: Identifying Counterhold Tool T10531/1
Courtesy of AUDI OF AMERICA, LLC
Adapter: T40314

Fig 9: Adapter T40314
Courtesy of AUDI OF AMERICA, LLC

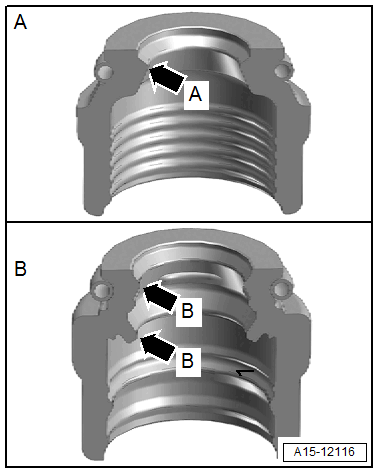

Fitting Tool: T40376/1 for the valve stem seal with a double sealing lip. Refer to Figure.

Courtesy of AUDI OF AMERICA, LLC
Assembly Tool: T40427

Courtesy of AUDI OF AMERICA, LLC
Locking Tool: T40435

Courtesy of AUDI OF AMERICA, LLC
Compression Tester Kit: VAG1763

Fig 10: Compression Tester Kit VAG 1763
Courtesy of AUDI OF AMERICA, LLC

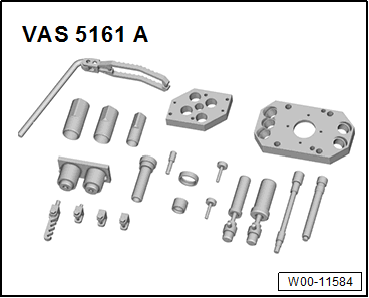

Valve Keeper Tool Kit: VAS5161A with the Valve Cotter Tool Kit - Guide Plate: VAS5161/19C

Fig 11: Valve Keeper Tool Kit VAS5161A
Courtesy of AUDI OF AMERICA, LLC
Dial Indicator - 0-10mm: VAS6079

Fig 12: Dial Gauge
Courtesy of AUDI OF AMERICA, LLC
Engine and Transmission Holder: VAS6095A

Fig 13: Engine And Transmission Holder
Courtesy of AUDI OF AMERICA, LLC
Engine Bung Set: VAS6122

Fig 14: Engine Bung Set
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers: VAS6362

Fig 15: Hose Clip Pliers
Courtesy of AUDI OF AMERICA, LLC

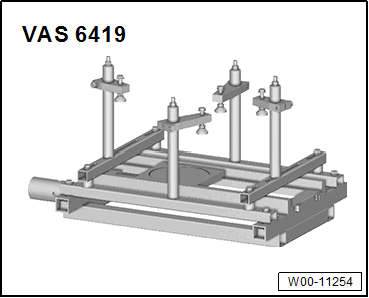

Cylinder Head Tensioning Device: VAS6419

Courtesy of AUDI OF AMERICA, LLC
Dial Indicator Holder: VW387

Fig 16: Dial Gauge Holder
Courtesy of AUDI OF AMERICA, LLC
Spark Plug Removal Tool: 3122B

Fig 17: Identifying Spark Plug Removal Tool 3122B
Courtesy of AUDI OF AMERICA, LLC
Puller - Valve Seal: 3364

Fig 18: Identifying Puller - Valve 3364
Courtesy of AUDI OF AMERICA, LLC
Seal Installer - Valve Stem: 3365 for the valve stem seal with a single sealing lip. Refer to Figure.

Fig 19: Identifying Seal Installer - Valve Stem 3365
