Charge Air System, Checking For Leaks

WARNING: This page is about a different car, the 2022 Audi A6 Quattro and 2021 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Turbo System Tester Kit:VAG1687
Turbo System Tester Kit - Adapter 6:VAG1687/6 and the Adapters :VAG1687/3 , :VAG1687/13-2 , :VAG1687/15

Procedure

Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the lock carrier cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

Audi A4/A5:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the air guide -2-.

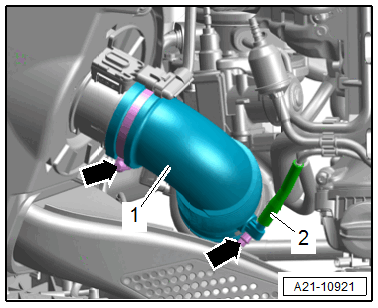

-- Loosen the hose clamps -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the vacuum hose -2- at the same time to not damage it.

-- Remove the air duct pipe -1-.

Audi A6/A7

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and then remove the air guides -1 and 2-.

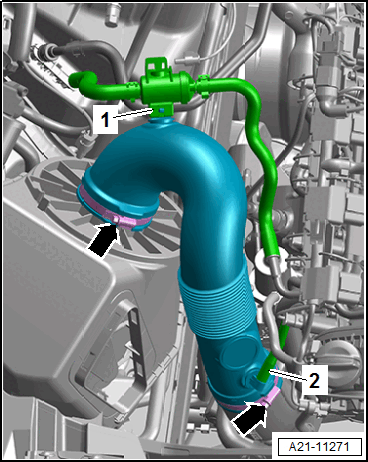

-- Disengage the EVAP system hose -1- with the fuel hose.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamps -arrows-.

-- Remove the vacuum hose -2- and air duct pipe -1-.

Audi Q5:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and air duct -1-.

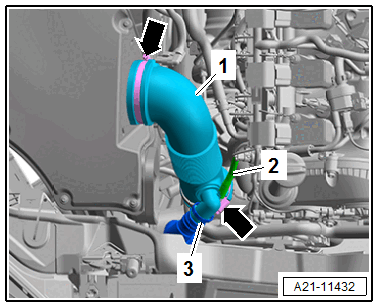

-- Loosen the hose clamps -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the vacuum hose -2- at the same time to not damage it.

-- Remove the air duct pipe -1-.

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

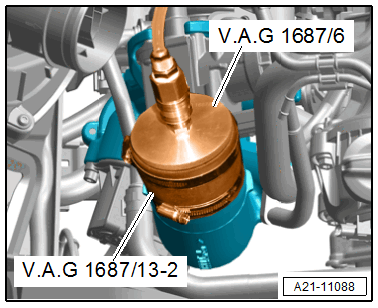

-- Install the :VAG1687/6 and :VAG1687/13-2 on the turbocharger.

CAUTION:

Risk of damaging the coupling due to improper handling.

- Coupling must not be bent more than 10°.

- Do not load the coupling on the cable.

-- Loosen the front clamping sleeve -arrows- and push toward the rear.

Fig 1: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

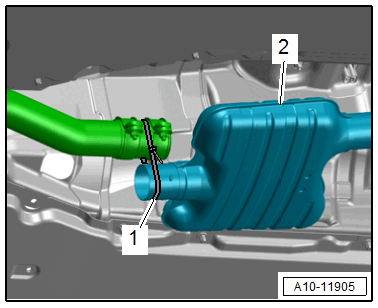

-- Slightly lower the front muffler -2- and secure as shown with a cable tie -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Seal the front muffler with :VAG1687/3 and :VAG1687/15 .

Courtesy of AUDI OF AMERICA, LLC

-- Connect the :VAG1687 to the :VAG1687/6 using the connection -5-.

-- Completely remove the pressure regulating valve -2- and close the valves -3 and 4-.

Courtesy of AUDI OF AMERICA, LLC

Pull the knob in order to rotate the pressure regulating valve -2-.

-- Connect the :VAG1687 to compressed air -1- with a commercially available intermediate piece.

-- Drain the water in the viewing glass via the water drain plug -6-.

-- Open the valve -3-.

CAUTION:

Risk of damaging the components if the pressure is set too high.

- Never set the test pressure above the specified adjustment.

-- Set the pressure to 0.2 bar (2.9 psi) using the pressure regulating valve -2-.

-- Open the valve -4- and wait until the test circuit is filled. Regulate the pressure to 0.2 bar (2.9 psi) again if necessary.

-- Check the charge air system for leaks by listening, feeling and using commercially available leak detection spray or the :VAG1842S .

A small quantity of air dissipates via the valves in the engine. For this reason a pressure retention test is not possible.
Refer to the Operating Instructions for information on using the :VAG1842S .

Assembling

Assembly is performed in reverse order.

Release the pressure in the test circuit by pulling off the coupling before removing the adapter.
Secure all hose connections with hose clamps that match the ones used in series production.

-- Install the lock carrier cover. Refer to OVERVIEW - BUMPER COVER .

-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

Tightening Specifications

Refer to OVERVIEW - AIR FILTER HOUSING
Refer to OVERVIEW - MUFFLER
Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS
