Special Tools

WARNING: This page is about a different car, the 2022 Audi A6 Quattro and 2021 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Elbow Assembly Tool:T10118

Fig 1: Elbow Assembly Tool T10118
Courtesy of AUDI OF AMERICA, LLC
Socket:T10405

Fig 2: Identifying Socket T30
Courtesy of AUDI OF AMERICA, LLC
Bit Torx T30:T10573

Fig 3: Bit Torx T30 T10573
Courtesy of AUDI OF AMERICA, LLC
Socket and Jointed Extension - 24mm:T40175

Fig 4: Identifying 24 MM Socket And Jointed Extension
Courtesy of AUDI OF AMERICA, LLC
Oil Pressure Gauge Kit:VAG1342

Fig 5: Identifying Oil Pressure Gauge Kit
Courtesy of AUDI OF AMERICA, LLC
Vehicle Diagnostic Tester - Test Adapter - 2+3 Pin:VAS5571

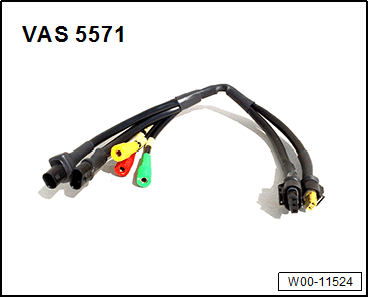

Fig 6: Identifying Vehicle Diagnostic Tester - Test Adapter
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers:VAS6362

Fig 7: Hose Clip Pliers
Courtesy of AUDI OF AMERICA, LLC
Fastening Device:T40414 , not illustrated
