Oil Pump, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi A6 Quattro and 2021 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the oil pan lower section. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .

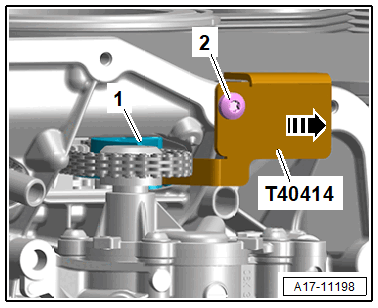

-- Position the :T40414 at the chain tensioner -1-, push in direction of -arrow- and secure with the bolt -2- to 9 Nm.
-- Remove oil pump bolts -arrows- -2-.
-- Disengage the drive chain -1- and remove the oil pump.
