Special tools and workshop equipment required

Puller - Unit Injector: T10055

Fig 1: Puller - Unit Injector with Adapter
Courtesy of AUDI OF AMERICA, LLC
Locking Pin: T10060A

Fig 2: Identifying Locking Pin
Courtesy of AUDI OF AMERICA, LLC
Crankshaft Seal Installer Kit: T10122B with Crank Shaft Seal Installer - Guide Piece: T10122/6A

Fig 3: Identifying Seal Installer - Crankshaft T10122A
Courtesy of AUDI OF AMERICA, LLC
Seal Installer, Intermediate Shaft: T10356/1

Fig 4: Identifying Seal Installer
Courtesy of AUDI OF AMERICA, LLC

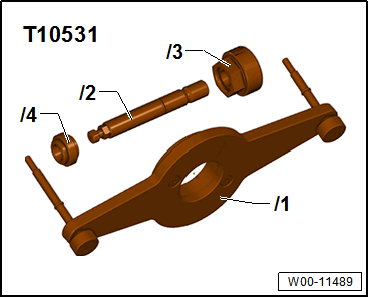

Vibration Damper Assembly Tool: T10531

Fig 5: Assembly Tool Set T10531
Courtesy of AUDI OF AMERICA, LLC
Vibration Damper Assembly: T10531/5-/6

Courtesy of AUDI OF AMERICA, LLC
Torx Bit - T40: T10545

Courtesy of AUDI OF AMERICA, LLC
Wrench - 21mm: T40263

Fig 6: Identifying Wrench - 21mm
Courtesy of AUDI OF AMERICA, LLC
Adapter: T40314

Fig 7: Adapter T40314
Courtesy of AUDI OF AMERICA, LLC
Piston Installation Tool: T40347

Courtesy of AUDI OF AMERICA, LLC
Counterhold: T40378

Fig 8: Counterhold T40378
Courtesy of AUDI OF AMERICA, LLC
Counterhold: T40379

Fig 9: Counterhold T40379
Courtesy of AUDI OF AMERICA, LLC
Outside Micrometer - 75-100mm: VAS6071

Courtesy of AUDI OF AMERICA, LLC
Dial Indicator - 0-10mm: VAS6079

Fig 10: Dial Gauge
Courtesy of AUDI OF AMERICA, LLC
Engine Bung Set: VAS6122

Fig 11: Engine Bung Set
Courtesy of AUDI OF AMERICA, LLC
Press Piece - 31.5mm: VW418A

Fig 12: Identifying Press Piece
Courtesy of AUDI OF AMERICA, LLC
Pilot Drift: VW222A

Fig 13: Identifying Pilot Drift
Courtesy of AUDI OF AMERICA, LLC
Dial Indicator Holder: VW387

Fig 14: Dial Gauge Holder
Courtesy of AUDI OF AMERICA, LLC
Press Piece - 28x100mm: VW421

Fig 15: Identifying Tube 28 mm Dia. 100 mm VW 421
Courtesy of AUDI OF AMERICA, LLC
Counterhold - Flywheel: 10-201

Courtesy of AUDI OF AMERICA, LLC
Bearing Installer - Multiple Use: 40-103

Fig 16: Bearing Installer - Multiple Use 40-103
Courtesy of AUDI OF AMERICA, LLC
Not Illustrated:
Internal Dial Gauge: VAS6078
