Pistons, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Audi A6 Quattro and 2021 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
- Replace bolts that were tightened with an additional turn after removing them.
- Arrow on the piston crown points toward belt pulley side.
- Install the upper joint of the three-part oil scraping ring 120° offset to the neighboring compression ring

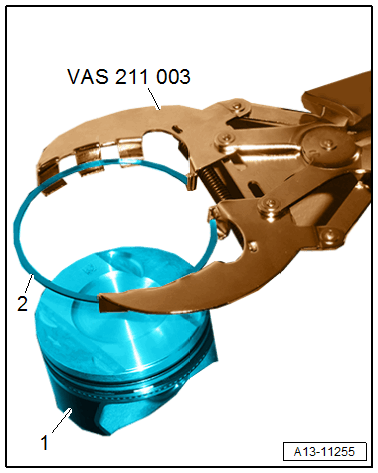

-- Install the compression ring. Refer to Figure.

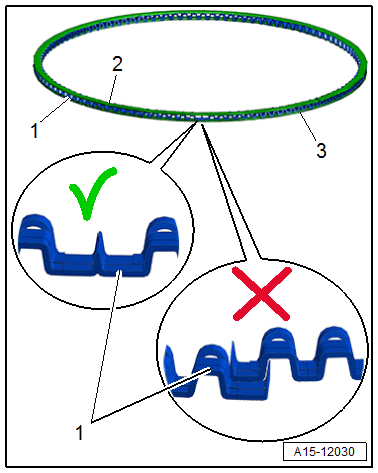

-- Installing the oil scraping ring. Refer to Figure.
-- Coat the contact surface of the bearing shells and the cylinder wall with engine oil.

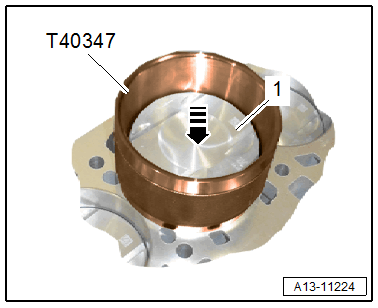

-- Push the piston -1- with the : T40347 carefully by hand in the cylinder -arrow-.
-- Install the connecting rod bearing cap. Pay attention to the installation position -item 2- OVERVIEW - PISTONS AND CONNECTING ROD => List Item: Connecting Rod Bearing Cap.
-- Install the cylinder head. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
-- Install the oil pan upper section. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .
