Vibration Damper, Removing And Installing, Version 2: Notes
WARNING: This page is about a different car, the 2022 Audi A6 Quattro and 2021 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Vibration damper, version 2. Refer to Figure.
Special tools and workshop equipment required
- Wrench - 21mm: T40263
- Adapter: T40314
- Counterhold: T40379
- Vibration Damper Assembly Tool: T10531
- Vibration Damper Assembly: T10531/5-/6

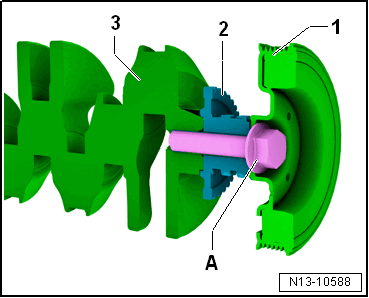

- The vibration damper bolt -A- connects the vibration damper -1-, the timing chain sprocket -2- and the crankshaft -3- with each other. Before removing the bolt, the chain sprocket must be secured to the crankshaft as described in the following.
Tool Preparation
-- Remove the bolts -arrows- and remove the adapter -1- from the : T10531/1 .
