Vibration Damper, Removing And Installing, Version 2: Installing

Fig 1: Identifying Collar Nut

Courtesy of AUDI OF AMERICA, LLC

Install in the reverse order of removal while noting the following:

• Replace the bolt with the O-ring after removing.

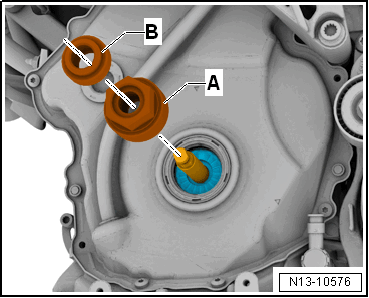

-- If necessary, remove the : T10531/4  -B- and : T10531/3  -A- from the : T10531/6  .

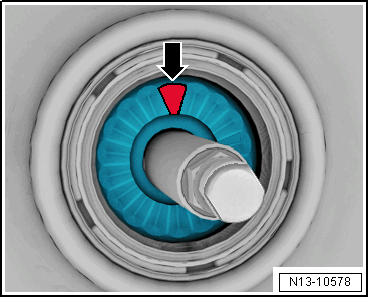

-- Attach the vibration damper. At the same time, pay attention to the tooth contour of the chain sprocket -arrow-.

Fig 2: Identifying TDC

Courtesy of AUDI OF AMERICA, LLC

-- Move the vibration damper into installation position.

Courtesy of AUDI OF AMERICA, LLC

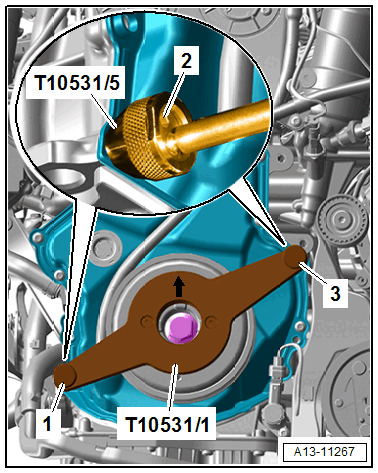

-- Position the : T10531/1  as shown to the vibration damper.

-- Hand-tighten the knurled bolts -1 and 3- into the adapters, while doing so, slightly move the vibration damper back and forth to check if the vibration damper is correctly seated in the tooth profile.

-- If necessary, align the adapter on the inner hex socket -2- with a 4 mm hex socket wrench and counterhold.

• The arrow marking on the : T10531/1  must point upward.

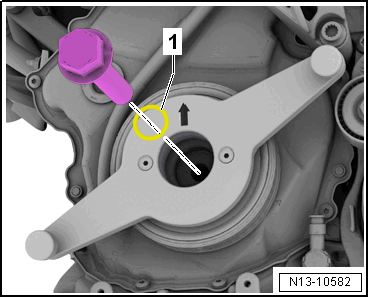

-- Install a new vibration damper bolt hand-tight with an oiled O-ring -1-.

Fig 3: Identifying Vibration Damper Bolt And O-Ring

Courtesy of AUDI OF AMERICA, LLC

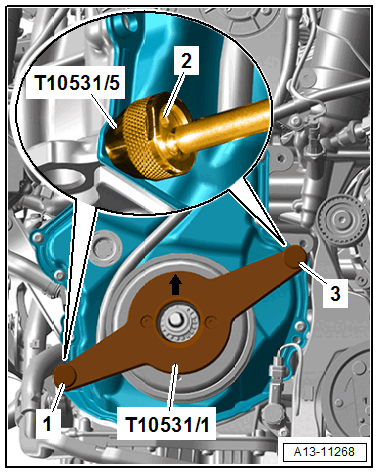

-- Remove the knurled bolts -1 and 3- and remove the : T10531/1  .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the : T10531/5  .

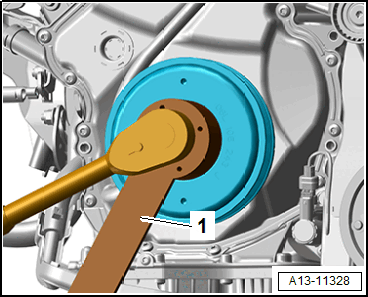

-- Tighten the vibration damper bolt, to do so, use the : T40379  -1-.

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

• Replace the timing chain cover bolts after removing.

-- Install the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Install the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .
