Sub-Assembly Bracket, Removing And Installing: Installing

WARNING: This page is about a different car, the 2022 Audi A6 Quattro and 2021 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

Replace bolts that were tightened with an additional turn after removing them.
Replace the O-ring and seals after removing.
Used coolant cannot be used again.

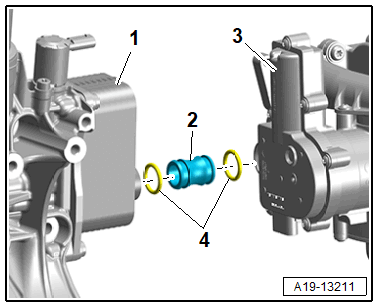

-- Coat the new O-rings -4- with coolant.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the connecting piece -2- in the Engine Temperature Control Actuator -N493- -3-.

-- Push the engine oil cooler -1- with the sub-assembly bracket onto the connecting piece, position the bolts and tighten.

-- Install the starter generator. Refer to GENERATOR, REMOVING AND INSTALLING .

-- Install the A/C compressor. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING FROM BRACKET .

-- Install the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Install the oil filter element and check the oil level. Refer to ENGINE OIL .

-- Fill with coolant. Refer to COOLANT, FILLING .

-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
