Ribbed Belt, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi A6 Quattro and 2021 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
There is a risk of injury if the radiator fan turns on by itself.
- When performing procedures near the radiator maintain a distance to the radiator.
CAUTION:
Risk of destroying a used ribbed belt by reversing the running direction.
- Mark the running direction before removal.
- Pay attention to the running direction when reinstalling.

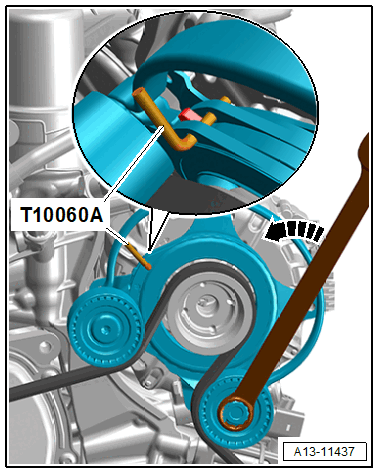

-- Turn the tensioner in the direction of -arrow- to release the tension on the ribbed belt.
-- Use the : T10060A to lock the tensioner as shown.
-- Remove the ribbed belt.
