Right Engine Support, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi A6 Quattro and 2021 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the right engine mount. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .

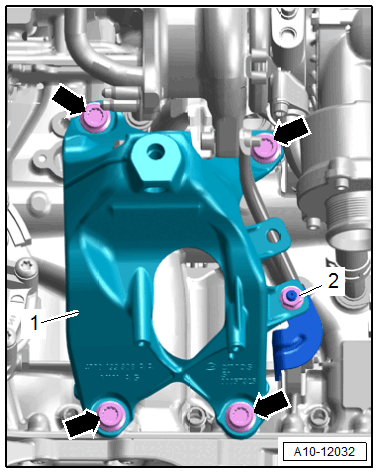

-- Remove the nut -2- and free up the bracket with the wire.
-- Remove the bolts -arrows- and remove the right engine support -1-. (Shown with the engine removed.)
