Balance Shaft, Removing And Installing, Intake Side: Removing

WARNING: This page is about a different car, the 2022 Audi A6 Quattro and 2021 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the radiator. Refer to RADIATOR, REMOVING AND INSTALLING .

-- Remove the coolant pump toothed belt. Refer to COOLANT PUMP TOOTHED BELT, REMOVING AND INSTALLING .

-- Remove the balance shaft drive chain. Refer to BALANCE SHAFT DRIVE CHAIN, REMOVING AND INSTALLING .

TIP:

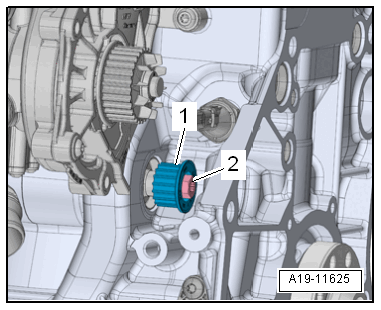

Fig 1: Identifying Drive Wheel And Bolt

Courtesy of AUDI OF AMERICA, LLC

The drive wheel bolt has a left thread.

-- Remove the bolt -2-.

-- Remove the drive wheel -1- for the coolant pump toothed belt.

-- Remove the bolt -1- and the intermediate shaft sprocket.

Fig 2: Identifying Intermediate Shaft Sprocket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the mounting pin -1-.

Fig 3: Bearing Pins Installation Position

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and the intake side balance shaft. If necessary, slightly rotate the balance shaft.

Fig 4: Identifying Intake Camshaft Balance Shaft

Courtesy of AUDI OF AMERICA, LLC
