Special tools and workshop equipment required

Elbow Assembly Tool: T10118

Fig 1: Elbow Assembly Tool T10118
Courtesy of AUDI OF AMERICA, LLC
Analog Refractometer: T10007B

Fig 2: Refractometer : T10007 A
Courtesy of AUDI OF AMERICA, LLC
Bits for VAG1331/13: T10099

Fig 3: Identifying Bits
Courtesy of AUDI OF AMERICA, LLC

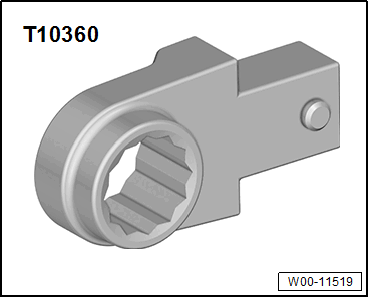

Torque Wrench 1331 Insert - Ring Wrench - 12mm: T10360

Fig 4: Identifying Ring Wrench
Courtesy of AUDI OF AMERICA, LLC
Socket: T10405

Fig 5: Identifying Socket T30
Courtesy of AUDI OF AMERICA, LLC
Wrench - 21mm: T40263

Fig 6: Identifying Wrench - 21mm
Courtesy of AUDI OF AMERICA, LLC
Adapter: T40314

Fig 7: Adapter T40314
Courtesy of AUDI OF AMERICA, LLC
Cooling System Tester: VAG1274B

Fig 8: Cooling System Tester VAG1274B
Courtesy of AUDI OF AMERICA, LLC
Cooling System Tester - Adapter: VAG1274/8

Fig 9: Identifying Cooling System Tester Adapter
Courtesy of AUDI OF AMERICA, LLC
Cooling System Tester - Adapter: VAG1274/9 for version 2 cap

Fig 10: Cooling System Tester - Adapter VAG1274/9
Courtesy of AUDI OF AMERICA, LLC
Adapter: VAG1274B/15 for version 1 cap

Fig 11: Adapter VAG1274B/15
Courtesy of AUDI OF AMERICA, LLC
Cooling System Charge Kit: VAS6096

Fig 12: Cooling System Charge Kit: VAS6096
Courtesy of AUDI OF AMERICA, LLC
Shop Crane - Drip Tray: VAS6208

Fig 13: Identifying Drip Tray
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers: VAS6340

Fig 14: Hose Clip Pliers VAS6340
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers: VAS6362

Fig 15: Hose Clip Pliers
Courtesy of AUDI OF AMERICA, LLC
Hose Clamps - Up To 25 mm: 3094

Fig 16: Hose Clamps
Courtesy of AUDI OF AMERICA, LLC
