Radiator Fan 2 -V177-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi A6 Quattro and 2021 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- The securing components for the wires must correspond to the production series. Refer to Parts Information.
-- Remove the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .
-- Free up the wiring harness.

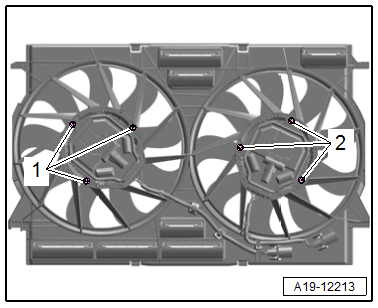

-- Remove the bolts -1 or 2- and remove the corresponding radiator fan.
TIP:
Do not remove the counter-balancing clamps from the fan wheel. This can lead to noise generation due to a fan wheel imbalance.
