Radiator Fan -VX57-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi A6 Quattro and 2021 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- The securing components for the wires must correspond to the production series. Refer to Parts Information.
-- Remove the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .
-- Free up the wiring harness.

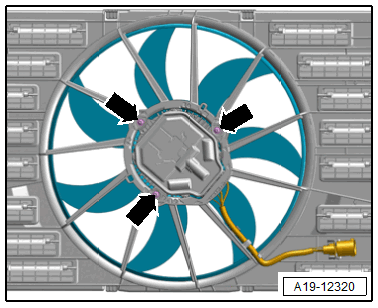

-- Remove the bolts -arrows- and then remove the radiator fan.
TIP:
If the counter-balancing clamps are missing from the fan wheel, the imbalance may produce noise.
