Coolant Pump, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Audi A6 Quattro and 2021 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

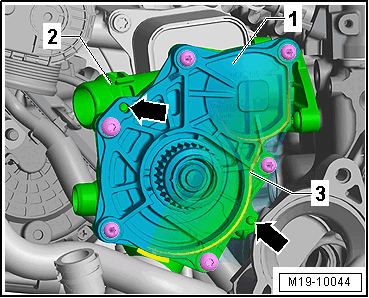

-- Position the toothed belt and bring the coolant pump -1- into installation position.
-- Pay attention that the centering piece -arrows- and seal -3- are seated correctly.
-- Tighten the coolant pump bolts. Refer to Figure.

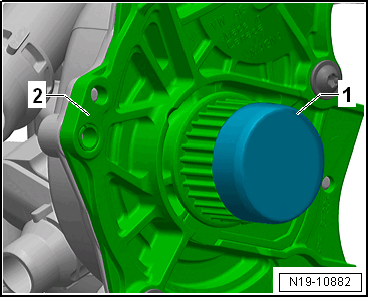

-- After installing a new coolant pump -2-, remove the protective cap -1- from the drive wheel.
- Secure all hose connections with hose clamps that match the ones used in series production. Refer to the Parts Information.
- Used coolant cannot be used again.
-- Connect the coolant hose to the connector coupling. Refer to Figure.
-- Fill with coolant. Refer to COOLANT, FILLING .
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
