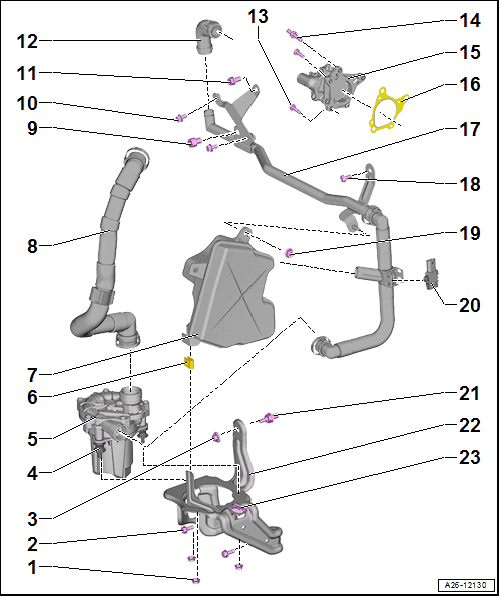

Overview - Secondary Air System
WARNING: This page is about a different car, the 2021 Audi A6 Quattro, 2020 Audi A6 Quattro, and 2019 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- 8 Nm
- Bolt
- 9 Nm
- Nut
- 8 Nm
- Rubber Bushing
- Secondary Air Injection Pump Motor -V101-
- Secondary Air Injection Pump Motor -V101-, Removing and Installing. Refer to Secondary Air Injection Pump Motor -V101-, REMOVING AND INSTALLING .
- Clip
- Resonator
- Connecting Line
- From the Secondary Air Injection Pump Motor -V101- to the air filter housing
- Bolt
- 20 Nm
- Bolt
- 9 Nm
- Bolt
- 20 Nm
- Hose
- Bolt
- 9 Nm
- Double Bolt
- 9 Nm
- Secondary Air Injection Solenoid Valve -N112-
- Secondary Air Injection Solenoid Valve -N112-, Removing and Installing. Refer to Secondary Air Injection Solenoid Valve -N112-, REMOVING AND INSTALLING .
- Seal
- Replace after removing.
- Connecting Line
- From Secondary Air Injection Pump Motor -V101- on the Secondary Air Injection Solenoid Valve -N112-
- Bolt
- 9 Nm
- Nut
- 8 Nm
- Secondary Air Injection Sensor 1 -G609-
- Double Bolt
- 10 Nm
- Bracket
- For secondary air injection pump
- Clip
