Fan Shroud, Removing And Installing: Removing
-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .
-- Remove the front left wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- Remove the charge air cooler. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
-- Remove the left and right headlamp cover -1- upward -arrows-.
-- Remove the bolts -arrows- and air duct -1-.
-- Release the left and right catches in direction of -arrows- and remove the retaining pin -1- for the radiator upward.
-- Release the catches in direction of -arrows- and remove the upper air duct -1-.
-- Place the container of the :VAS5014 or the :VAS6208 underneath.
There is a risk of injury if the radiator fan turns on by itself.
- When performing procedures near the radiator maintain a distance to the radiator.
-- Lift the clamp -2- and remove the coolant hose from the lower left side of the radiator.

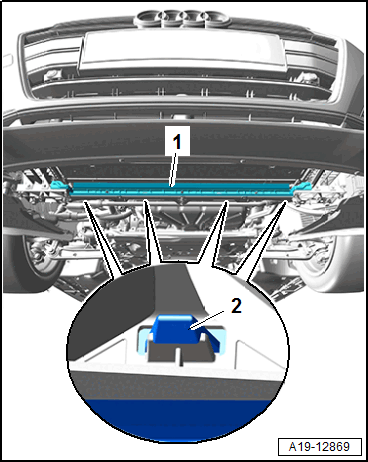

-- Release the catches -2- and remove the air duct -1-.
-- Disconnect the radiator fan connector -arrow-.
-- Remove the left and right bolt -2- and push the radiator bracket with the radiator toward the front.
-- Remove the bolt -1- and remove the left radiator bracket.
-- Disconnect the connector -2- for the High Pressure Sensor -G65-.
Risk of damaging the refrigerant lines and hoses by removing and pivoting the condenser.
- Do not stretch, bend or kink the refrigerant lines and hoses.
Risk of damaging the retainers due to improper handling.
- Carefully release the retainers.
-- Release the left and right catches in direction of -arrows-, disengage the condenser -1- from the radiator and tie it up on the left side.
-- Press the left and right fan shroud locking tabs -arrow- at the same time and lift the fan shroud upward from the radiator. Then remove it downward by carefully pushing the radiator forward.
