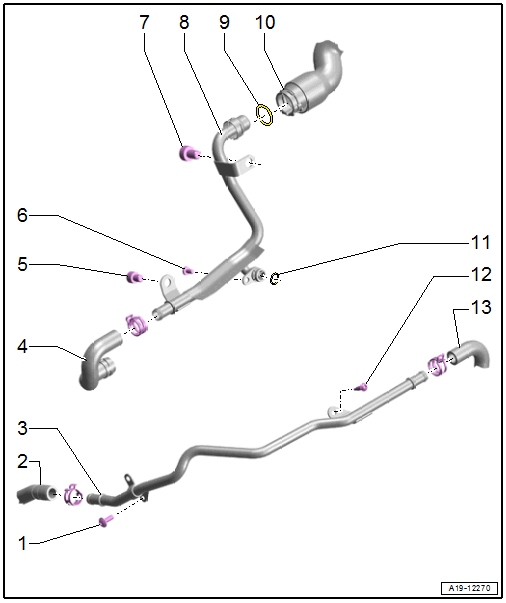

Overview - Coolant Pipes on Engine
WARNING: This page is about a different car, the 2021 Audi A6 Quattro, 2020 Audi A6 Quattro, and 2019 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 9 Nm
- Coolant Hose
- Left Coolant Pipe
- Removing and installing. Refer to LEFT COOLANT PIPE, REMOVING AND INSTALLING .
- Coolant Hose
- Bolt
- 20 Nm
- Bolt
- 9 Nm
- Bolt
- 20 Nm
- Right Coolant Pipe
- Removing and installing. Refer to RIGHT COOLANT PIPE, REMOVING AND INSTALLING, VEHICLES WITH PARTICULATE FILTER .
- O-Ring
- Replace after removing.
- Coolant Hose
- Fold back and pry up the clip to remove the heat shield boot
- Connecting. Refer to Figure.
- O-Ring
- Replace after removing.
- Bolt
- 6 Nm
- Coolant Hose
