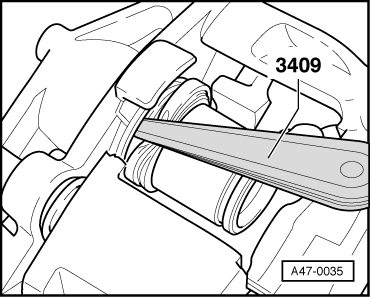

Installing piston outer seal lip into cylinder groove

Fig 1: Installing Piston Outer Seal Lip Into Cylinder Groove

GWWA47-0035

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Hold piston in front of brake caliper housing.
