Vacuum Pump, Removing And Installing, 2.0L TDI EVO Engine: Installing
Install in reverse order of removal and note the following:
CAUTION:
Clean the bolts and nuts before reusing.
Replace the bolts and nuts if damaged.
Replace the self-locking bolts and nuts after removing
- Replace the seal after removal.
- Check the vacuum lines for damage before assembling and replace if necessary.

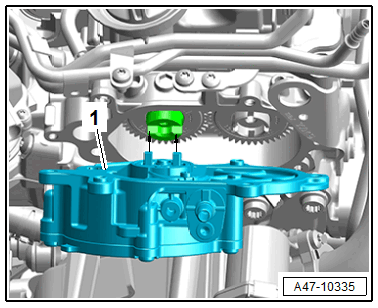

-- Position the vacuum pump driver -1- so it engages in the symmetrical groove on the camshaft when positioning -arrows-.
-- Install the air duct pipe. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .
-- Install the plenum chamber bulkhead. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .
-- Install the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
