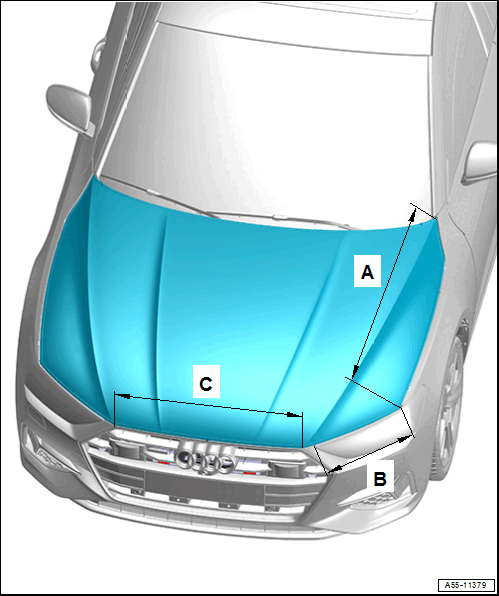

Adjustment Dimensions

TIP:

Gap dimensions apply to the specified areas.

Courtesy of AUDI OF AMERICA, LLC

1. A - Front Lid to Front Bumper
   • Gap dimension = 2.9 mm
2. B - Hood to Headlamp
   • A6: gap dimension = 5.0 mm
   • A7 Sportback: gap dimension = 5.2 mm
3. C - Hood to Radiator Grille
   • A6: gap dimension = 4.2 mm
   • A7 Sportback: gap dimension = 3.5 mm
