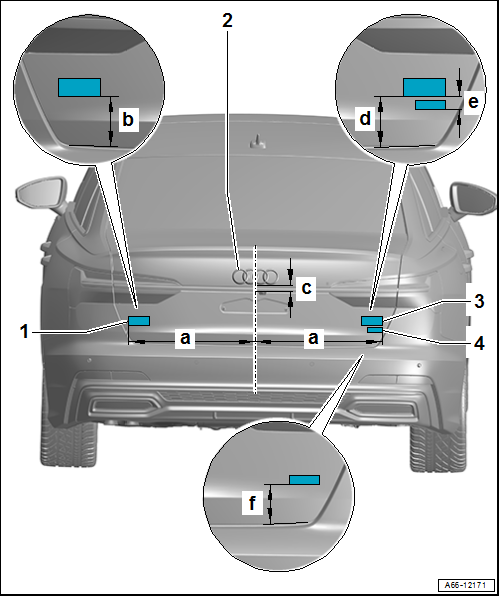

Dimensions - Rear Name Badges And Emblems, A6
- General Information - Name Badges and Emblems, Replacing. Refer to GENERAL INFORMATION - NAME BADGES AND EMBLEMS, REPLACING .
- Left Name Badge
- A6
- S6
- A6 sedan
Dimension -a- = 541 mm
Dimension -b- = 83 mm
- A6 Avant
Dimension -a- = 563 mm
Dimension -b- = 123 mm
- Audi Emblem
Dimension -c- = 42 mm
- Right Name Badge
- 40 TFSI
- 45 TFSI
- 55 TFSI
- 30 TDI
- 35 TDI
- 40 TDI
- 45 TDI
- 50 TDI
- A6 sedan
Dimension -a- = 541 mm
Dimension -d- = 83 mm
- A6 Avant
Dimension -a- = 563 mm
Dimension -d- = 119 mm
- Right Name Badge
- A6 quattro
- A6 sedan
Dimension -a- = 541 mm
Dimension -e- = 18 mm
Dimension -f- = 65 mm
- A6 Avant
Dimension -a- = 563 mm
Dimension -e- = 18 mm
Dimension -f- = 123 mm
