Side Sill Trim Panel, Removing And Installing: Removing
-- Remove the front door. Refer to DOOR, REMOVING AND INSTALLING .
-- Remove the rear door. Refer to DOOR, REMOVING AND INSTALLING .
-- Open the quick release -3-.
-- Free up the side sill trim panel -1- on the mounts -2- -arrow-.
-- Carefully warm the side sill trim panel using the :VAS1978/14A in the side panel area.
-- Carefully loosen the side sill trim panel near the adhesive -3- and near the centering pin.

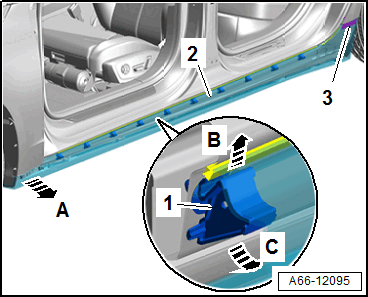

-- Remove the side sill trim panel -2- from the front bracket -arrow A- and then remove from the rear brackets -1- by pressing the brackets with the side sill trim panel upward -arrow B- and tilting outward at the bottom -arrow C-.
-- Remove the side sill trim panel and lay it on a soft surface.

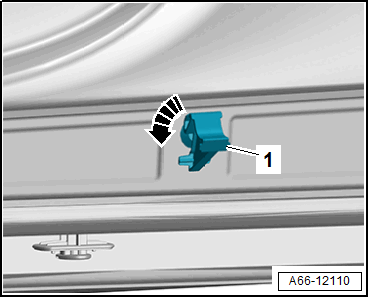

-- Turn the bracket -1- 90° -arrow- and remove.
