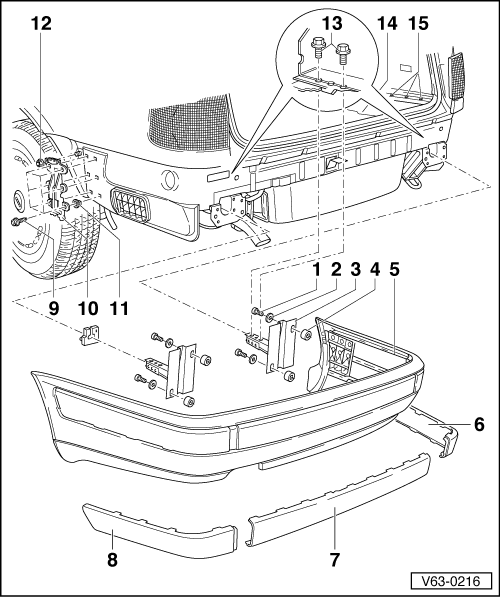

Rear Bumper Assembly, Wagon: Notes

• 23 ± 2.0 Nm (17 ft lb ± 18 in lb)

Removing:

-- Unlock rear loading floor panel and fold up.

-- Remove bolts  REAR BUMPER ASSEMBLY, WAGON on both sides.

-- Remove luggage compartment trim  REAR BUMPER ASSEMBLY, WAGON from both sides.

-- Remove bolts  REAR BUMPER ASSEMBLY, WAGON on both sides.

-- Remove bolts for securing bumper to wheel housing. Refer to Fig. 1 Removing and Installing Bumper to Wheel Housing Liner .

-- Unclip bumper from guide pieces (both sides)  REAR BUMPER ASSEMBLY, WAGON

-- Push bumper down at ends and pull out of guide pieces  REAR BUMPER ASSEMBLY, WAGON. Refer to Fig. 2 Removing Bumper from Guide Pieces .

-- Remove bumper from both ends when taking off

-- Pull bumper off toward rear

To install:

Install in reverse order of removal, noting the following:

-- Guide bumper into guide pieces from bottom (reverse of Fig. 2 Removing Bumper from Guide Pieces .)

-- Clip bumper ends into guide pieces.

-- Removing, refer to Fig. 3 Removing and Installing Bumper Trim Strips .

-- Removing, refer to Fig. 3 Removing and Installing Bumper Trim Strips .

-- Removing, refer to Fig. 3 Removing and Installing Bumper Trim Strips .

• 1.5 ± 0.2 Nm (13 ± 1.77 in lb)

• 2.5 ± 0.5 Nm (22 ± 4.4 in lb)

• 15 ± 1.5 Nm (11 ± 13 in lb)
• M10 x 95

• Self-tapping
