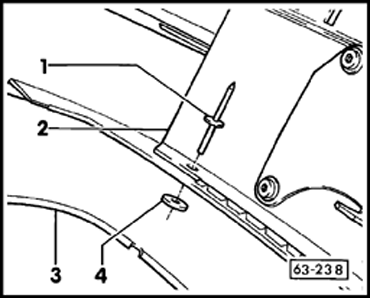

Fig. 2 Installing Bumper to Cover

GWWUS63-0238

Courtesy of AUDI OF AMERICA, LLC

-- Use extra long pop-rivets with washer -4- to install bumper -2- onto cover -3-.
