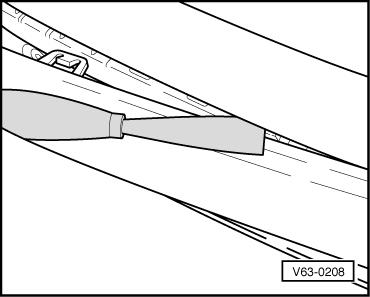

Fig. 1 Removing Front Bumper, Left and Right Trim

Courtesy of AUDI OF AMERICA, LLC

-- Remove front bumper trim while unlocking tabs with plastic putty knife.

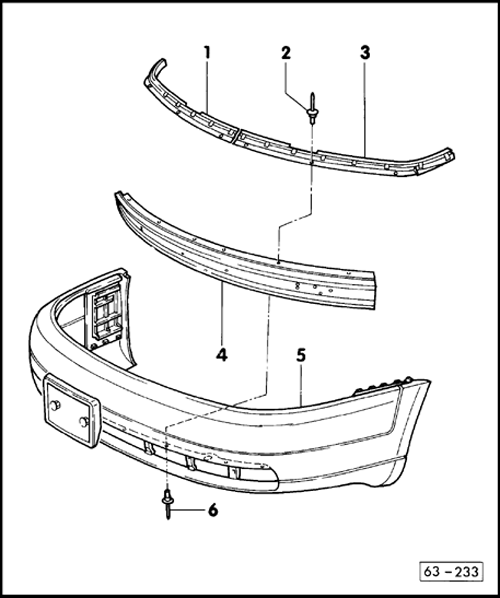

Front Bumper Cover, Wagon, Assembly

Courtesy of AUDI OF AMERICA, LLC

1. Trim Strip, Right
   • Remove after disassembling bumper  ) Fig. 1 Removing Front Bumper, Left and Right Trim.
   • Drill and punch out rivets.
2. Pop-Rivet
   • With offset.
3. Trim Strip, Left
   • Remove after disassembling bumper  ) Fig. 1 Removing Front Bumper, Left and Right Trim.
   • Drill and punch out rivets.
4. Bumper

   To remove:

   -- Remove bumper assembly.

   -- Drill out rivets. Refer to Fig. 1 Removing Pop-Rivets .

   -- Remove bumper cover from bumper

5. Bumper Cover
   • Remove bumper assembly for access.
6. Pop-Rivet
   • With offset.
