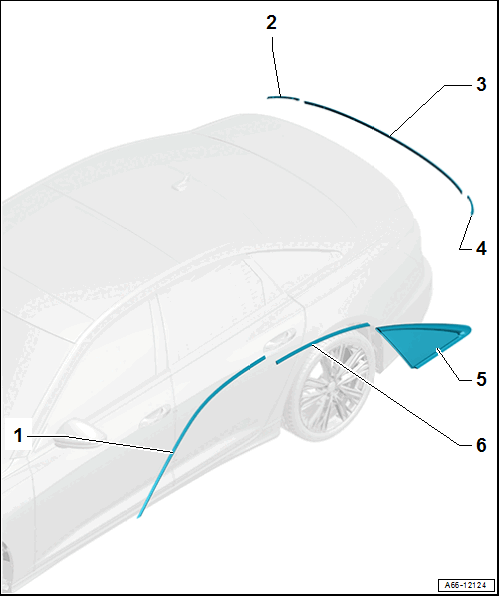

Overview - Trim Molding

Courtesy of AUDI OF AMERICA, LLC

Front Door Trim Molding
- Removing and Installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING, FRONT DOOR .
Tail Lamp Trim Molding
- Right
- Replace after removing.
- To remove, warm up carefully with the Wiring Harness Repair Set - Hot Air Blower :VAS1978/14A .
Tail Lamp Trim Molding
- Center
- Replace after removing.
- To remove, warm up carefully with the Wiring Harness Repair Set - Hot Air Blower :VAS1978/14A .
Tail Lamp Trim Molding
- Left
- Replace after removing.
- To remove, warm up carefully with the Wiring Harness Repair Set - Hot Air Blower :VAS1978/14A .
Side Window Trim Molding
- Only removable with the side window
- Side Window, Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
Rear Door Trim Molding
- Removing and Installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING, REAR DOOR .
