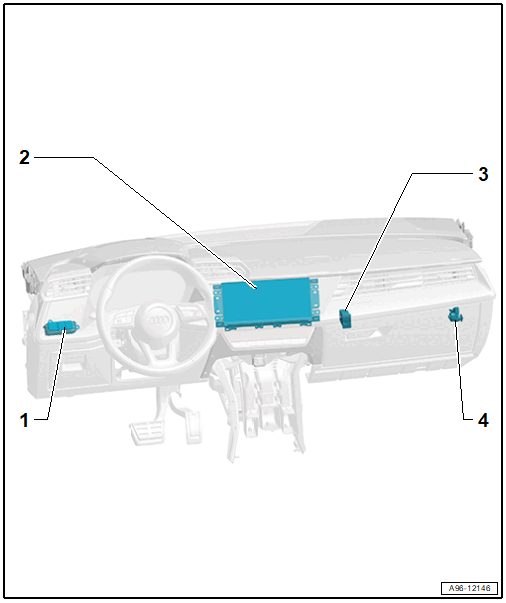

Component Location Overview - Instrument Panel Controls

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

Courtesy of AUDI OF AMERICA, LLC

1. Light Switch -E1-
   • With Fog Lamp and Rear Fog Lamp Switch -E23-
   • Removing and Installing. Refer to Light Switch -E1-, REMOVING AND INSTALLING .
2. Front Information Display Control Head -J685-
   • Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .
3. Front Passenger Airbag Deactivation Key Switch -E224-
   • Removing and installing. Refer to the appropriate Service Information .
4. Glove Compartment Lamp Switch -E26-
   • Removing and Installing. Refer to Glove Compartment Lamp Switch -E26-, REMOVING AND INSTALLING .
