Component Location Overview - Controls In Roof Trim Panel

Courtesy of AUDI OF AMERICA, LLC

1. Right Front Reading Lamp Button -E634-
   • Integrated in the Front Roof Module -WX3-. Cannot be replaced separately
   • If faulty, replace the Front Roof Module -WX3-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
2. Left Front Reading Lamp Button -E633-
   • Integrated in the Front Roof Module -WX3-. Cannot be replaced separately
   • If faulty, replace the Front Roof Module -WX3-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
3. Sunroof Button -E325- with Roof Shade Button 1 -E584-
   • Removing and Installing. Refer to Sunroof Button -E325-, REMOVING AND INSTALLING .
4. Front Roof Module -WX3-
   • With Roof Electronics Control Module -J528-
   • Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
5. Front Passenger Vanity Mirror Lamp Contact Switch -F148-
   • RHD: Driver Vanity Mirror Lamp Contact Switch -F147-
   • Integrated in the sun visor pivot bearing. Cannot be replaced separately
   • If faulty, replace the sun visor. Refer to SUN VISOR, REMOVING AND INSTALLING .
6. Right Rear Reading Lamp Switch -E455-
   • Integrated into the Rear Interior Lamp -WX2-. Cannot be replaced separately
   • If faulty, replace the Rear Interior Lamp -WX2-. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
7. Rear Interior Lamp -WX2-
   • Removing and Installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
8. Left Rear Reading Lamp Switch -E454-
   • Integrated into the Rear Interior Lamp -WX2-. Cannot be replaced separately
   • If faulty, replace the Rear Interior Lamp -WX2-. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
9. Driver Vanity Mirror Lamp Contact Switch -F147-
   • RHD: Front Passenger Vanity Mirror Lamp Contact Switch -F148-
   • Integrated in the sun visor pivot bearing. Cannot be replaced separately
   • If faulty, replace the sun visor. Refer to SUN VISOR, REMOVING AND INSTALLING .

Sunroof Button E325 - tightening specification

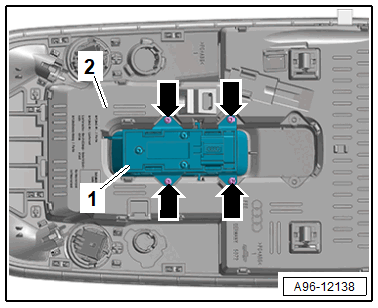

Fig 1: Sunroof Button -E325-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -arrows- to 0.65 Nm.
