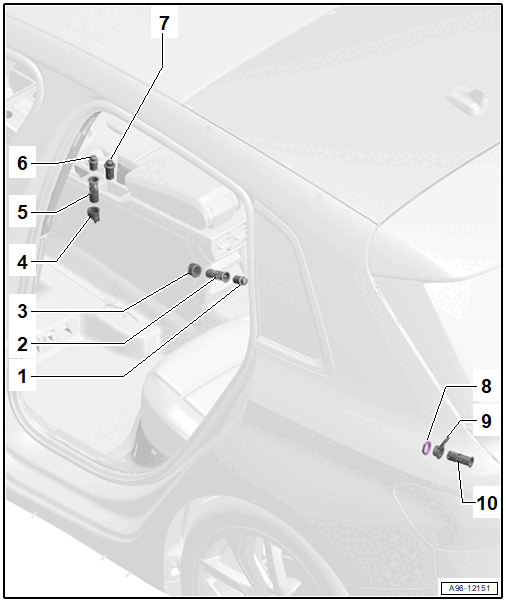

Overview - Cigarette Lighter, 12 V Socket

Courtesy of AUDI OF AMERICA, LLC

1. Blind Cover for 12 V Socket
   • Equipped on some models
2. 12 V Socket 2 -U18-
   • Removing and Installing. Refer to 12 V Socket 2 -U18-, REMOVING AND INSTALLING .
3. Illumination Ring
   • For the 12 V Socket 2 -U18-
   • Version: without illumination
   • Removing and Installing. Refer to ILLUMINATION RING, REMOVING AND INSTALLING .
4. Illumination Ring
   • For the 12 V Socket -U5-
   • Version: without illumination
   • Removing and Installing. Refer to ILLUMINATION RING, REMOVING AND INSTALLING .
5. 12 V Socket -U5-
   • Removing and Installing. Refer to 12 V Socket -U5-, REMOVING AND INSTALLING .
6. Blind Cover for 12 V Socket
   • Equipped on some models
7. Cigarette Lighter
   • Equipped on some models
8. Nut
   • 2 Nm
9. Mount with Cover
   • For the 12 V Socket 3 -U19-
10. 12 V Socket 3 -U19-
    • Removing and Installing. Refer to 12 V Socket 3 -U19-, REMOVING AND INSTALLING .
    • Replacing. Refer to 12 V Socket 3 -U19-, REPLACING .
