Overview - Automatic Headlamp Range Control, LHD

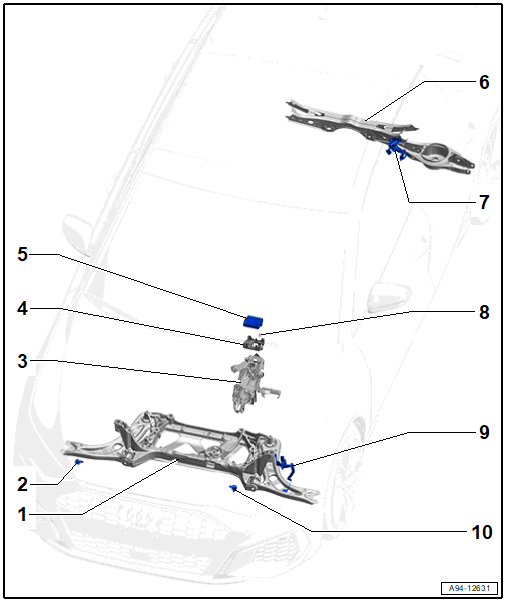

Fig 1: Exploded View Of Automatic Headlamp Range Control, LHD

Courtesy of AUDI OF AMERICA, LLC

1. Subframe
   • With the front suspension
2. Right Headlamp Beam Adjustment Motor -V49-
   • Removing and Installing. Refer to Left Headlamp Range Control Adjustment Motor -V48- /Right Headlamp Range Control Adjustment Motor -V49-, REMOVING AND INSTALLING .
3. Pedal Assembly
4. Bracket
   • For Headlamp Range Control Module -J431-
5. Headlamp Range Control Module -J431-
   • Removing and Installing. Refer to HEADLAMP RANGE CONTROL MODULE, REMOVING AND INSTALLING, LHD .
6. Rear Axle
   • Multi-link suspension shown
7. Left Rear Level Control System Sensor -G76-
   • Component location
     • Torsion beam axle: at the axle beam
     • Multi-link suspension: at the lower transverse link
   • Overview. Refer to Level Control System Sensor .
8. Expanding Clip
   • Quantity: 2
9. Left Front Level Control System Sensor -G78-
   • Component location: on the front control arm
   • Overview. Refer to Level Control System Sensor .
10. Left Headlamp Beam Adjustment Motor -V48-
    • Removing and Installing. Refer to Left Headlamp Range Control Adjustment Motor -V48- /Right Headlamp Range Control Adjustment Motor -V49-, REMOVING AND INSTALLING .
