Tire Pressure Monitoring Control Module -J502-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi S5, 2022 Audi A5 Quattro, 2021 Audi S5, 2021 Audi A5 Quattro, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the connector -1-.

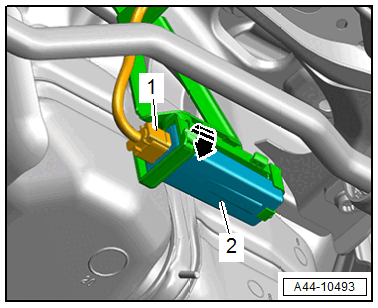

Fig 1: Tire Pressure Monitoring Control Module -J502

Courtesy of AUDI OF AMERICA, LLC

-- Release the catch in direction of -arrow- and remove the Tire Pressure Monitoring Control Module -J502- -2- toward the rear.
