Active Steering Control Module -J792-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi S5, 2022 Audi A5 Quattro, 2021 Audi S5, 2021 Audi A5 Quattro, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the footrest. Refer to FOOTREST, REMOVING AND INSTALLING .

-- Remove the front sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .

-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Free up the left front carpet and lift up slightly.

-- Remove the bolts -arrows- and disconnect the connector -1-.

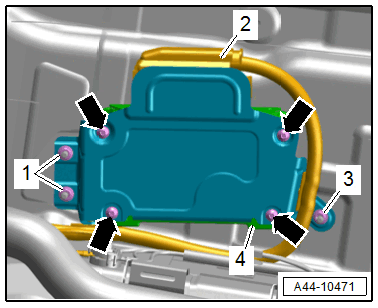

Fig 1: Active Steering Control Module -J792-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Active Steering Control Module -J792- -2-.
